QCZ-1 Pneumatic Percussion Drill

Multipurpose QCZ-1 Pneumatic Percussion Drill is portable smart small pneumatic tools, with shock, impact and pure clockwise rotation. Pneumatic explosion-proof no spark, safety performance is good wa

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of QCZ-1 Pneumatic Percussion Drill

Multipurpose QCZ-1 Pneumatic Percussion Drill is portable smart small pneumatic tools, with shock, impact and pure clockwise rotation.

Pneumatic explosion-proof no spark, safety performance is good wait for a characteristic. Mainly used in rock, brick, concrete components are installed on the pipeline, set up power lines, such as installation of anchor bolt, chemical plants, refineries, construction, heavy industry, is in danger of wet gas tunnel, underwater and narrow space. Especially in mine gas explosion, pneumatic explosion-proof no spark that can reflect the more security.

Operating Principle of QCZ-1 Pneumatic Percussion Drill

QCZ-1 Pneumatic Percussion Drill by the handle body, the pressing handle, cylinder head, push rod, etc. Compressed air into the pressing handle are connected by a tracheal tube joint, which can adjust the gas into the cylinder regulate line by putting into impact rotary or pure impact, so, reach the role of shock or rotation.

Parameter of QCZ-1 Pneumatic Percussion Drill

Model:

QCZ-1

Weight:

4.5kg

Supply Pressure:

0.5 ~ 0.7 Mpa

Bit Specifications::

I; 8 ; 12 ; 16  18 ; 22 ; 24  30

Maximum Drilling Depth:

300mm

Impact Energy:

2.5J

Impact Frequency:

48Hz

No Load Speed:

200r/min

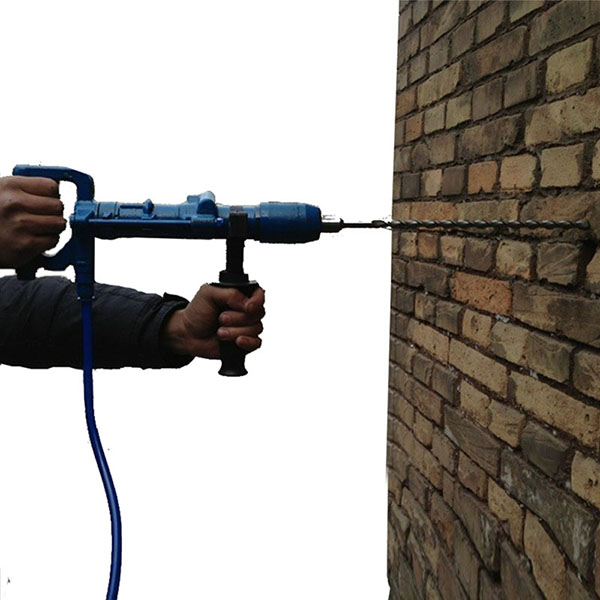

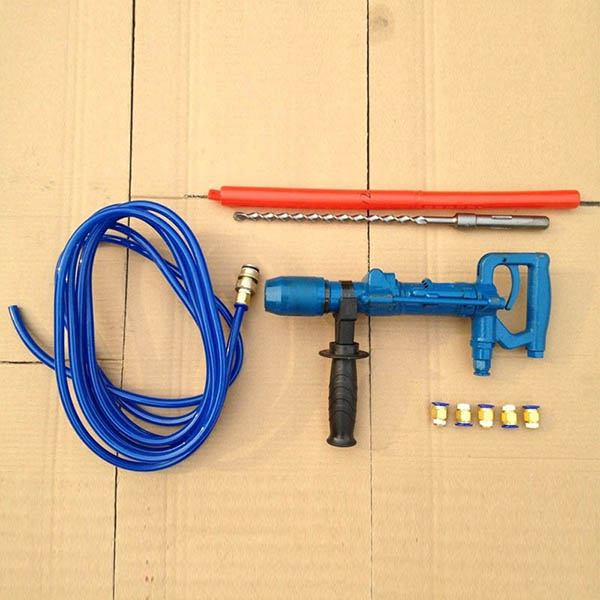

Pictures of QCZ-1 Pneumatic Percussion Drill
