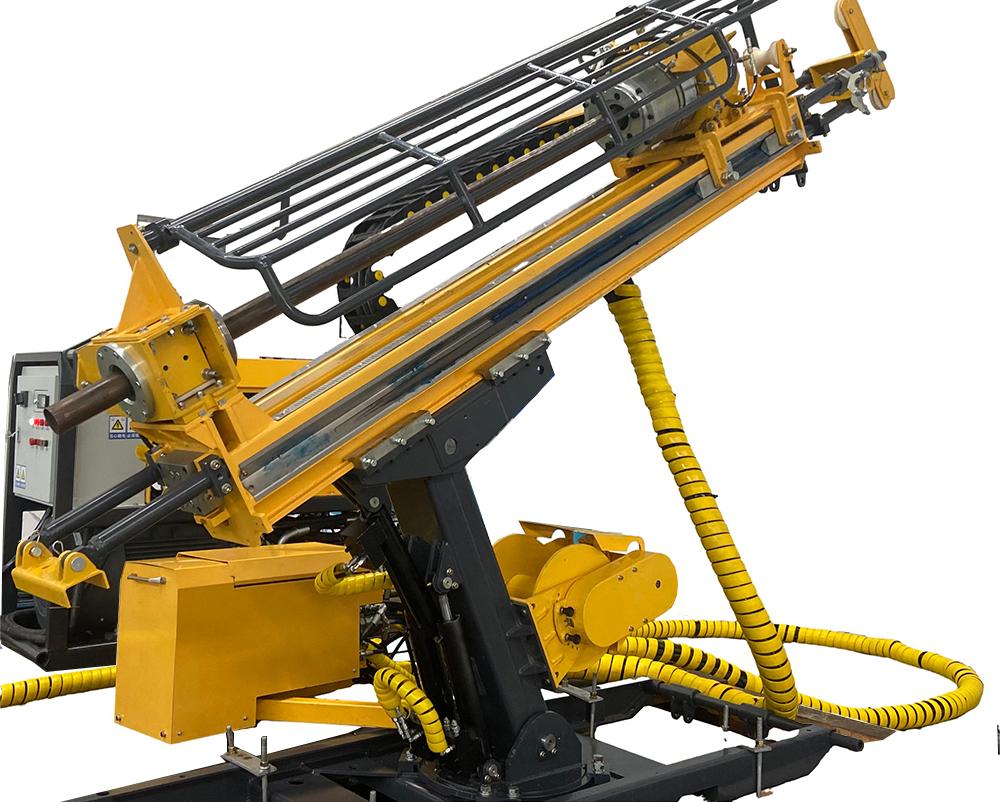

The UX1000 tunnel drilling rigs deliver automated drilling control, automatic formation adaptation and intelligent parameter adjustment, whilst supporting remote monitoring of field data and remote service support.
With ample torque reserves and a broad speed range, it effectively tackles complex formation challenges.
Nitrogen-spring drill rod clamps deliver flexible operation and reliable performance, working in tandem with the power head to ensure operational safety.
Compact and multi-purpose design with modular layout allows flexible operation in narrow areas and easy drilling at any angle.
| Technical Parameter | UX300 | UX600 | UX800 | UX1000 |
| Rig type | Fully hydraulic pit drilling rig | |||
| Drilling capacity (B/N/H) | 400 / 300 / 150 m | 600 / 500 / 220 m | 1000 /800 / 520 m | 1200 / 1000 / 620 m |
| Engine power (electric) | 37KW | 55 KW | 75 KW | 90 KW |
| Feed stroke | 1.1 m | 1.8 m | 1.8 m | 1.8 m |
| Max. torque | 650 Nm | 1800 Nm | 2000 Nm | 2250 Nm |
| upgrading power | 38 KN | 65 KN | 75 KN | 89 KN |
| Max. Drill Pipe Diameter | 90 mm | 90 mm | 90 mm | 90 mm |
| Suitable length of drill pipe | 1.5m | 1.5m / 3 m | 1.5m / 3 m | 1.5m / 3 m |
| Weight | 1550Kg | 3150Kg | 3350Kg | 3500 Kg |
| Forms of transport | Towing/manual labor for carrying | |||
