G7 Pneumatic Air Pick

G7 Pneumatic Air Pick is widely used in construction, mining, civil construction and other breaking applications. G7 Pneumatic Air Pick is more lighter and flexible compared to same type pick, it is s

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of G7 Pneumatic Air Pick

G7 Pneumatic Air Pick is widely used in construction, mining, civil construction and other breaking applications.

G7 Pneumatic Air Pick is more lighter and flexible compared to same type pick, it is suitable for operating all rounds of work, especially in narrow space or upper direction or high climbing is required.

Parameter of G7 Pneumatic Air Pick

Product Model

G7

Weight (kg)

7.2

Length (mm)

465

Shank size (mm)

φ26×80

Air Pressure (at 0.5MPa)

IImpact frequency (Hz)

≤20

Rotation (r/min)

≥21.6

Drill steel fixing method

clasp

Air hose inner diameter (mm)

19

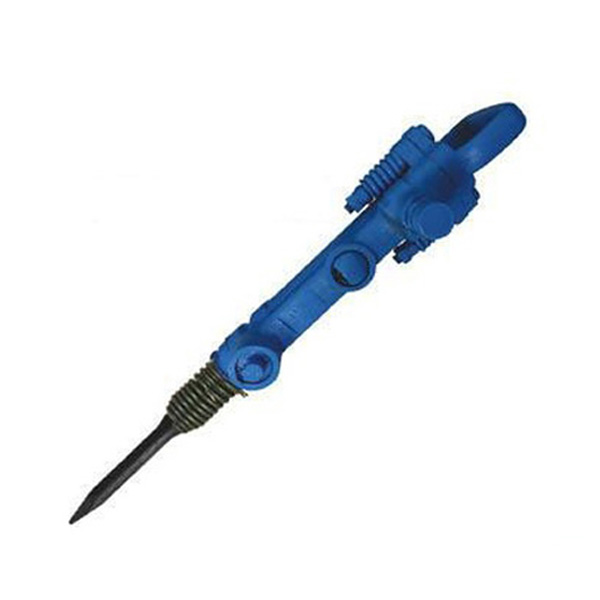

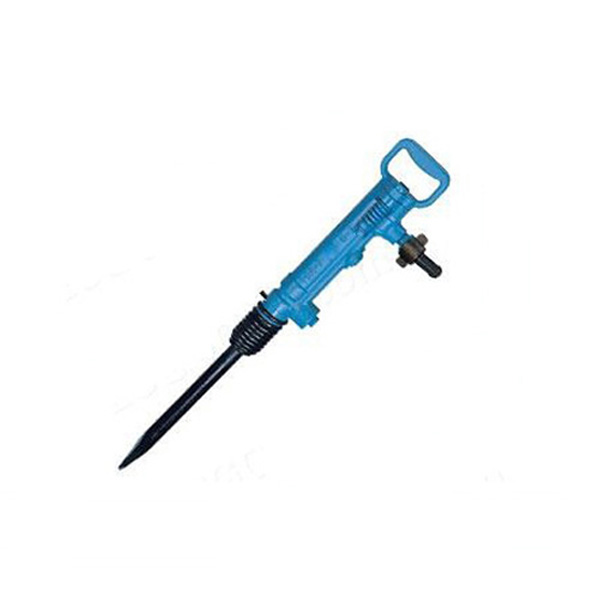

Pictures of G7 Pneumatic Air Pick
