G20 Hand Held Air Compressor Pneumatic Pick Jack Hammer

G20 Hand Held Air Compressor Pneumatic Pick Jack Hammer is used for truncating coal bed and breaking soft ore into pieces in mineral industry G20 Hand Held Air Compressor Pneumatic Pick Jack Hammer is

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of G20 Hand Held Air Compressor Pneumatic Pick Jack Hammer

G20 Hand Held Air Compressor Pneumatic Pick Jack Hammer is used for truncating coal bed and breaking soft ore into pieces in mineral industry

G20 Hand Held Air Compressor Pneumatic Pick Jack Hammer is used for destroying solid or frozen stratum in civil engineering, underground construction and people protection construction, etc.

G20 Hand Held Air Compressor Pneumatic Pick Jack Hammer also can be used for breaking old road surface in municipal construction and destroying the former concrete base during the course of equipment installation in industrial and mineral enterprise

Parameter of G20 Hand Held Air Compressor Pneumatic Pick Jack Hammer

Model

G20

Weight kg

20

Air Pressure( at 5kg/cm2)

Gas Consumption L/s

≤23

Impact frequency Hz

≥16

Drill steel fixing method

clasp

Air hose inner diameter mm

16


Parameters of G Series Pneumatic Pick Hammer

Item

Weight

(kg)

Overall

Length

(mm)

Impact

Energy

(J)

Frequency

(Hz)

Air consumption

(L/S)

Pituitary diameter

(mm)

Air pressure

(Mpa)

Drill specification

(mm)

Hose size

(mm)

G8

7.8

530

≥35


≥16


≤23

36

0.5-0.63

Dia 24*70

Dia 16

G10

10

570

≥43

≤26

38

Dia 24*70

Dia 16

G12

10

570

≥45

≤26

38

Dia 24*70

Dia16

G16

14

580

≥55

≤28

/

Dia 24*70

Dia19

G20-A

20

540

≥60

≤28

/

Dia 30*87

Dia19

G20-B

17.5

640

≥55

≤28

/

Dia 30*87

Dia19

G22

22

640

≥70

≤30

/

Dia 30*87

Dia19

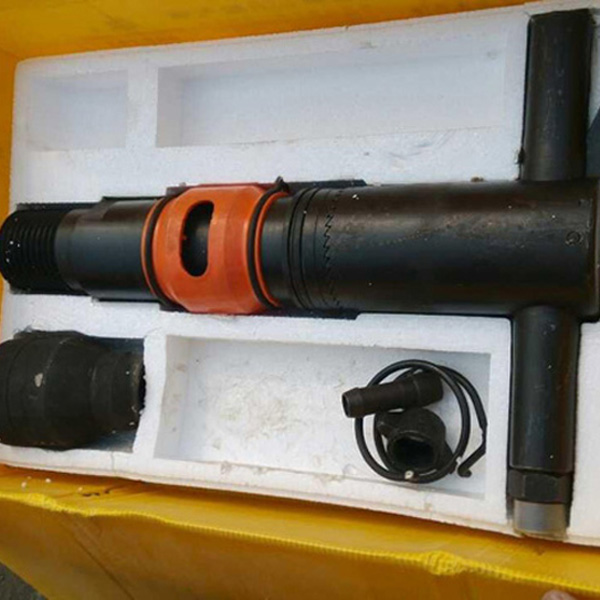

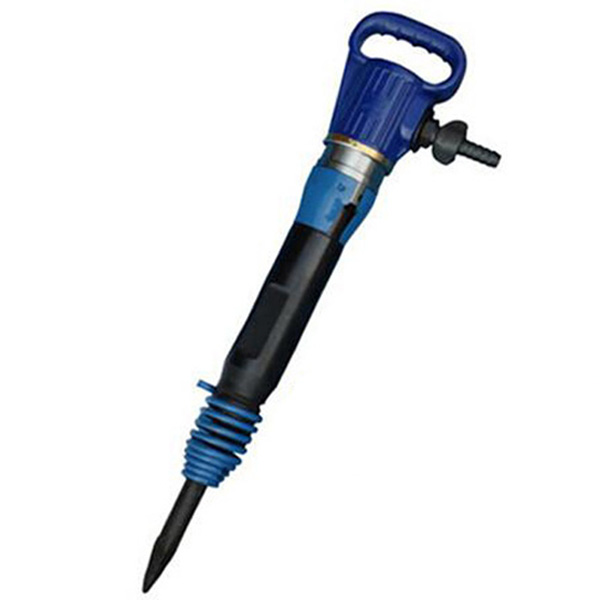

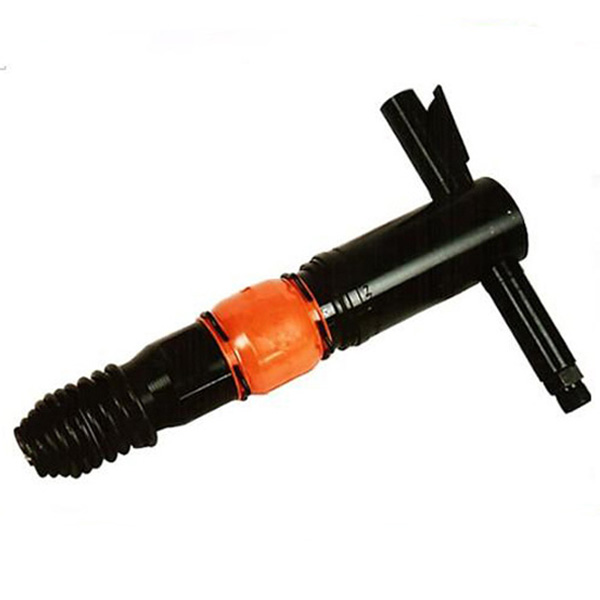

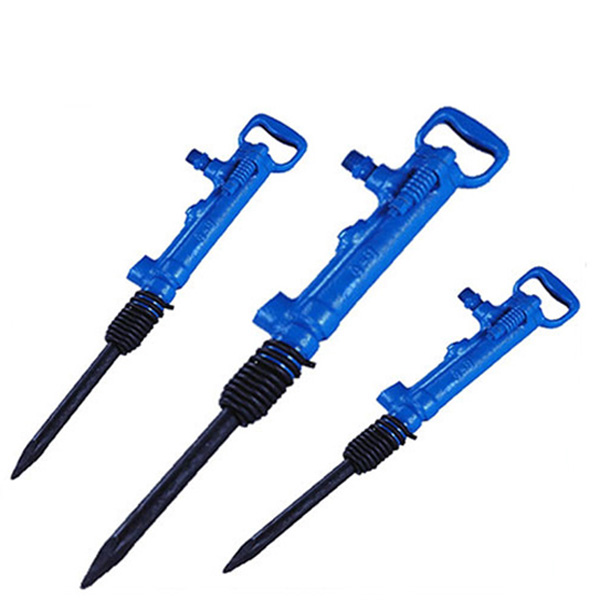

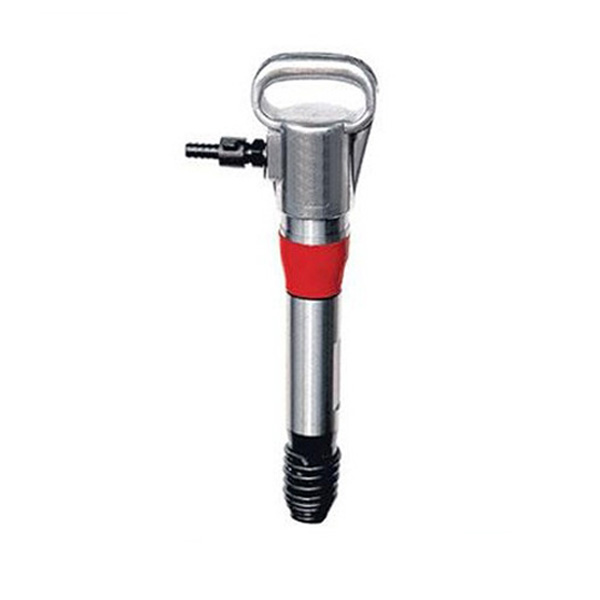

Pictures of G20 Hand Held Air Compressor Pneumatic Pick Jack Hammer
