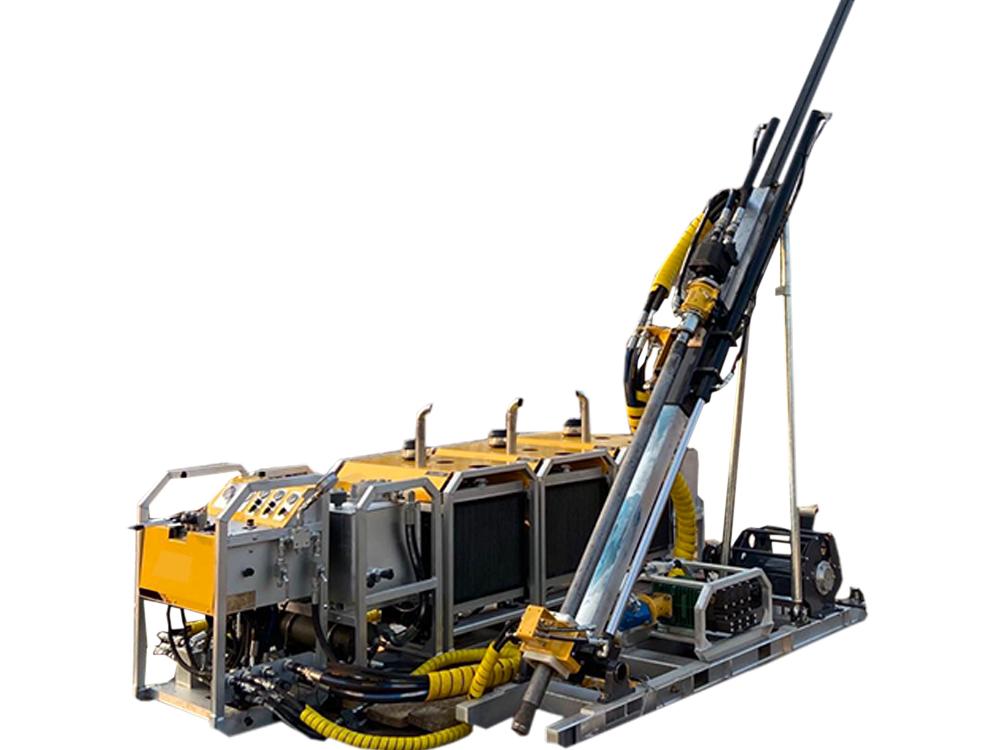

Fully hydraulic light weight drilling rigs can be diesel, electric, grouped or integrated power station, suitable for different working conditions and specific needs of operation and management.
The main structure adopts high-strength lightweight materials to minimise weight and facilitate on-site handling.
Internationally advanced power integration control technology, intelligent hydraulic control technology, and complex stratum hydraulic drilling control technology.
Adopting international famous brand hydraulic control parts and precision transmission parts to strictly control product quality.
| Technical Parameter | F300 | F600 | F800 | F1000 | F16-MP |
| Rig type | Fully hydraulic light weight drilling rig | ||||
| Drilling capacity (B/N/H) | 300 / 220 / 120 m | 600 / 400 /180 m | 800 / 600 /350 m | 1000 / 800 /400 m | 1200 / 1000 /600 m |
| Engine power | 1 x 33 KW | 3 x 24KW | 3 x 33 KW | 4 x 33 KW | 4 x 33 KW |
| Feed stroke | 1.2/1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m |
| Max.torque (normal speed) | 300 Nm | 600 Nm | 800 Nm | 1000 Nm | 1600 Nm |
| Max. lifting power | 56 KN | 100 KN | 120 KN | 125 KN | 138 KN |
| Max. Drill Pipe Diameter | 114 mm | 114 mm | 114 mm | 114 mm | 114 mm |
| Length of drill pipe | 1.0m /1.5m | 1.5m | 1.5m | 1.5m | 1.5m |
| Max. module weight | 180 Kg | 160 Kg | 180 Kg | 180 Kg | 180 Kg |
| Forms of transport | manual labor for carrying/small machinery | ||||
