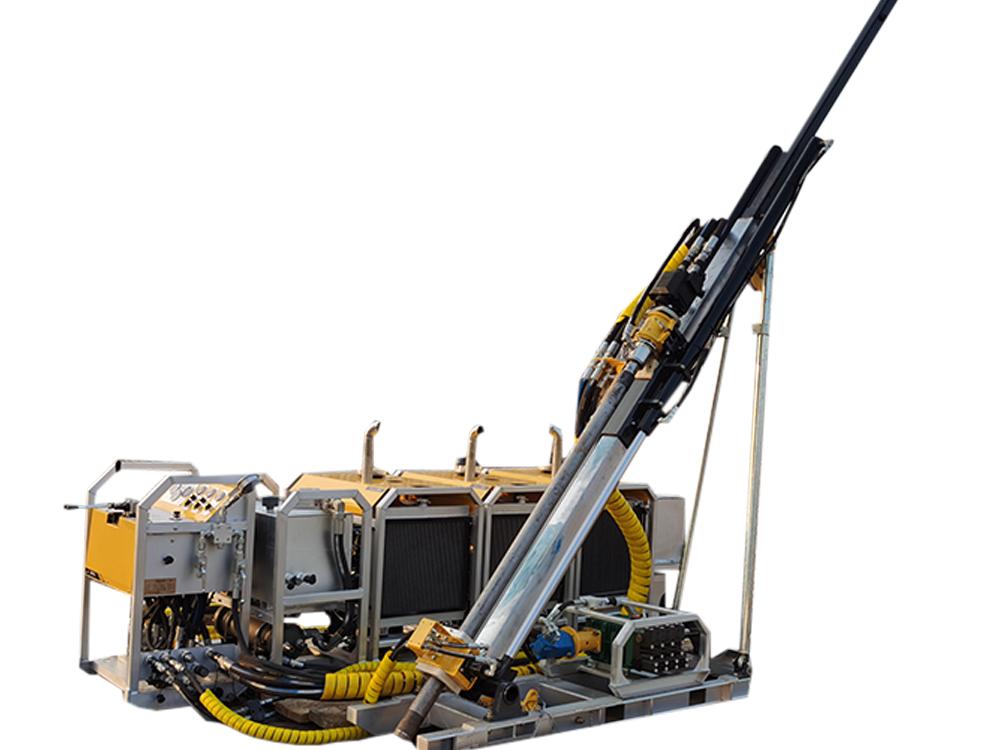

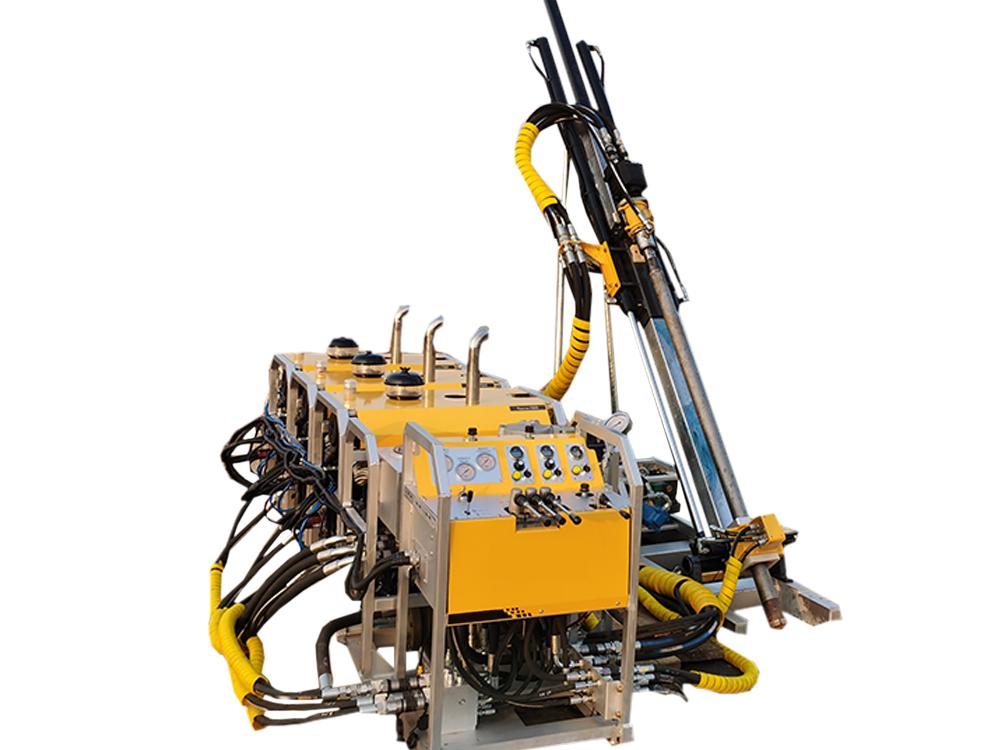

This portable Light Weight Drilling Rig is a fully hydraulic drilling rig designed for high mobility and efficiency. This compact drill rig machine offers powerful and precise performance in various terrains, making it a versatile drilling rig for multiple applications.
The fully hydraulic portable drilling rig combines exceptional manoeuvrability with formidable power. Lightweight and agile, it can be rapidly deployed across challenging terrain. Its hydraulic system operates smoothly and efficiently, delivering precision while conserving fuel, significantly reducing operational costs and simplifying handling. This makes it the ideal choice for efficient exploration.
| Rig type | Fully hydraulic light weight drilling rig | ||||
| Drilling capacity (B/N/H) | 300 / 220 / 120 m | 600 / 400 /180 m | 800 / 600 /350 m | 1000 / 800 /400 m | 1200 / 1000 /600 m |
| Engine power | 1 x 33 KW | 3 x 24KW | 3 x 33 KW | 4 x 33 KW | 4 x 33 KW |
| Feed stroke | 1.2/1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m |
| Max.torque (normal speed) | 300 Nm | 600 Nm | 800 Nm | 1000 Nm | 1600 Nm |
| Max. lifting power | 56 KN | 100 KN | 120 KN | 125 KN | 138 KN |
| Max. Drill Pipe Diameter | 114 mm | 114 mm | 114 mm | 114 mm | 114 mm |
| Length of drill pipe | 1.0m /1.5m | 1.5m | 1.5m | 1.5m | 1.5m |
| Max. module weight | 180 Kg | 160 Kg | 180 Kg | 180 Kg | 180 Kg |
| Forms of transport | manual labor for carrying/small machinery | ||||
