XY-1 100m Depth Hydraulic Drilling Rig Machine

XY-1A 100m Depth Hydraulic Drilling Rig Machine is a applicable for high-way and building construction foundation drilling ,general survey, geophysical exploration and blast hole drilling etc. XY-1A

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of XY-1 100m Depth Hydraulic Drilling Rig Machine

XY-1A 100m Depth Hydraulic Drilling Rig Machine is a applicable for high-way and building construction foundation drilling ,general survey, geophysical exploration and blast hole drilling etc.

XY-1A 100m Drilling Rig Machine was based on XY-1 100m Depth Hydraulic Drilling Rig Machine adding three drilling rig components parts of hydraulic swivel head, mobile oil cylinder and trailer underframe.

Contact us to get cost of XY-1 100m Depth Hydraulic Drilling Rig Machine

Parameter of XY-1 100m Depth Hydraulic Drilling Rig Machine

Main parameter

Drilling depth

100m

Finally hole diameter

75mm

Drilling rod diameter

42mm

Dimensions (L*W*H)

1640*920*1240

Weight (excluding engine)

500Kg

Swivel head

Spindle speed (three speed)

142,285,570rpm

Spindle stroke

450mm

Spindle pull-down max

15000N

Spindle lifting capacity max

25000N

Hoist

Max lifting capacity

(one speed single rope)

10000N

Circumference linear velocity of roller

0.42,0.81,1.68m/s

Steel rope capacity

27m

Steel rope diameter

9.3mm

Water pump

Type

Horizontal reciprocating single-acting piston pump

Bore

80mm

Stroke

100mm

Displacement(L/min)

100

matched with diesel engine(1800/min)

83

matched with motor:(1500r/min)

Pressure

1.5Mpa

Max make and break allowable pressure

0.7Mpa

Continuous Pressure

Oil Pump

Type

gear pump

Model

YBC-12/125

Rated speed

1500r/min

Rated pressure

8Mpa

Max pressure

12.5Mpa

Displacement

12L/min

Power machine

Diesel engine model

ZS1100BN

Rated speed

2200r/min

Rated Power

8.8KW

Weight

155kg

Motor engine model

Y132M-4-B3

Rated speed

1440r/min

Rated Power

7.5KW

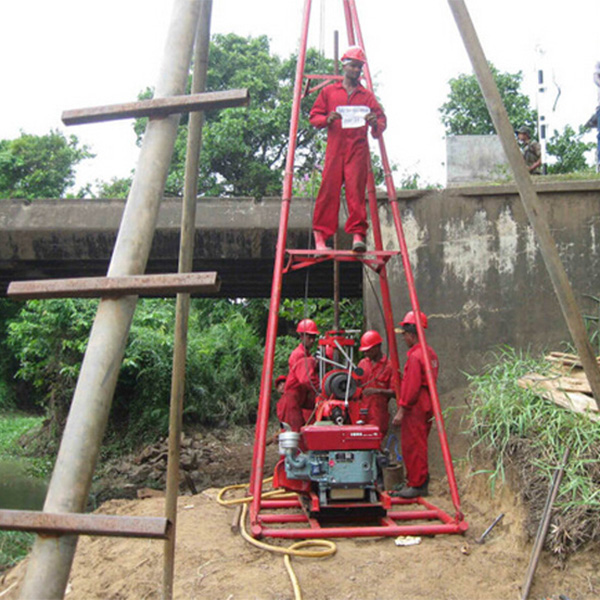

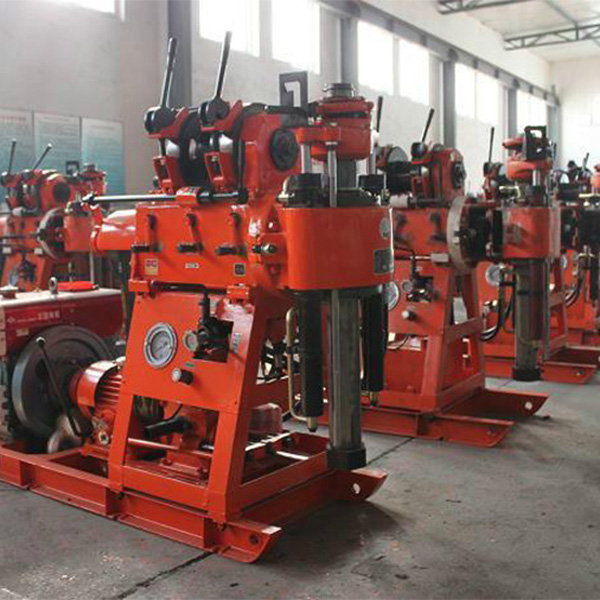

Pictures of XY-1 100m Depth Hydraulic Drilling Rig Machine
