XY 150 Mobile Tractor Trailer Mounted Cable Drilling Rig

XY 150 Mobile Tractor Trailer Mounted Cable Drilling Rig is a portable drilling rig which can be mounted on trailer, truck, tractor to form a borehole drilling rig truck.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of XY 150 Mobile Tractor Trailer Mounted Cable Drilling Rig

XY 150 Mobile Tractor Trailer Mounted Cable Drilling Rig is a portable drilling rig which can be mounted on trailer, truck, tractor to form a borehole drilling rig truck.

Features of XY 150 Mobile Tractor Trailer Mounted Cable Drilling Rig

1. Power of XY 150 Mobile Tractor Trailer Mounted Cable Drilling Rig can be electrical motor or diesel engine, as per your project needs;

2. Engine and Mud pump, reduction gears and drill rig and other drilling rig components are all installed on one base, more compact structure and improve the overall rigidity;

3. Mounted in 2-wheel trailer, easy to move around when working;

4. Easy to disassemble, installed and operation, the Heaviest part is less than 100KG, convenient for maintenance and transport;

5. Using alloy bit for soft ground, using diamond bits for hard ground.

6. SPT also supply.

Parameter of XY 150 Mobile Tractor Trailer Mounted Cable Drilling Rig

1.Overall Parameters

Drilling depth

150m

Borehole Diameter

400~75mm

Diameter of drill rod

50mm

Drilling angle

90~75°

Weight(not include power)

760kg

Dimension

2000*1000*1400mm

2. Vertical Spindle


Rotating speed

140,295, 470,790,1010 r/min

Feeding stroke

450mm

Max. Feeding force of spindle

15 KN

Max. Lifting capability of spindle

25 KN

Max. Torque

0.5 KN.m

3.Hoist


Max. single line hoisting capacity

1600Kg

Diameter of wire rope

12mm

Volume of winding drum

35m

Hug floodgate caliber

245mm

Hug floodgate belt width

70mm

4.Mud pump


Type

Horizontal single urn twin-action

Rate of flow

95/77 L/min

MAX. pressure

1.2MPa

Working pressure

0.7MPa

5.Power (either-or choice)


Diesel engine ZS1115

18HP, 2200r/min

Electrical motor Y-160-4

11KW, 1460r/min

Contact us for cost of XY 150 Mobile Tractor Trailer Mounted Cable Drilling Rig

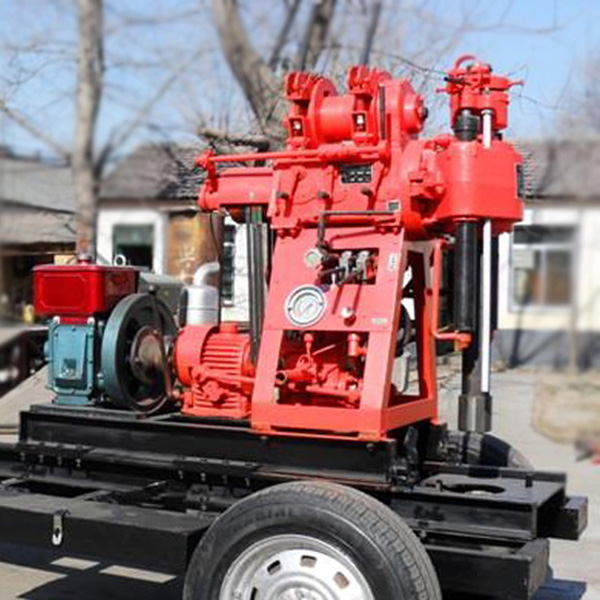

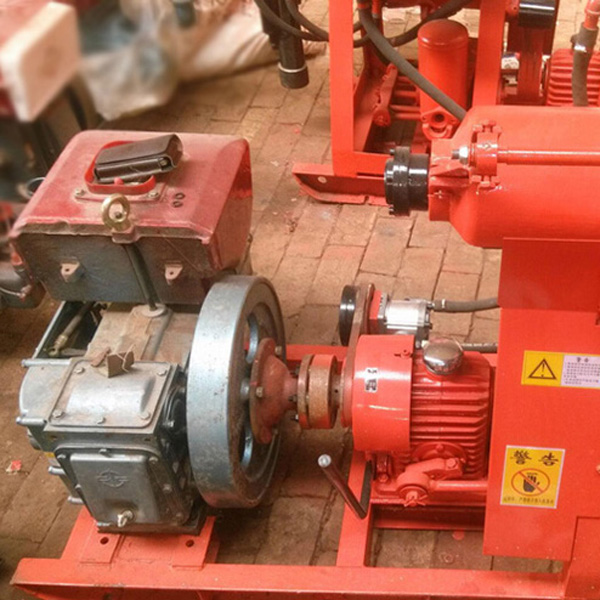

Pictures of XY 150 Mobile Tractor Trailer Mounted Cable Drilling Rig
