XY-2 Rotary Borehole Water Well Drilling Rig Equipment

1. XY-2 Rotary Borehole Water Well Drilling Rig Equipment for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete structure inspection holes

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of XY-2 Rotary Borehole Water Well Drilling Rig Equipment

1. XY-2 Rotary Borehole Water Well Drilling Rig Equipment for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete structure inspection holes.

2.Diamond drill bit, alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structures.

3.When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth may not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 150 mm.

Features of XY-2 Rotary Borehole Water Well Drilling Rig Equipment

1. XY-2 Rotary Borehole Water Well Drilling Rig Equipment  with hydraulic feeding device, elevated drilling efficiency, reduced labor strength.

2.The XY-2 Rotary Borehole Water Well Drilling Rig Equipment is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown, high efficiency, safe and reliable.

3. A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.

4. XY-2 Rotary Borehole Water Well Drilling Rig Equipment designed into compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.

Parameter of XY-2 Rotary Borehole Water Well Drilling Rig Equipment

Drilling capacity(m)

73 rod

100

60 rod

200

50 rod

380

42 rod

530

Spindle speed(r/min)

Forward


65;114;180;248;
310;538;849;1172


Reverse

51;242

Max torque (Nm)

2760

Angle reange

0-90°

Spindle max pull force(KN)

60

Spindle stroke (mm)

600

Hoist max life capacity with single rope (KN)

30

Spindle inner dia (mm)

76

Oil pump

SCB32/12

Power unit

Electric motor

Y180L-4,22Kw

Diesel engine

395K2,19.85Kw

Inner dia of spindle (mm)

2150×900×1690

Drill body weight (excluding power)(kg)

950

Contact us to get cost of XY-2B Borehole Exploration Drill Rigs Machine

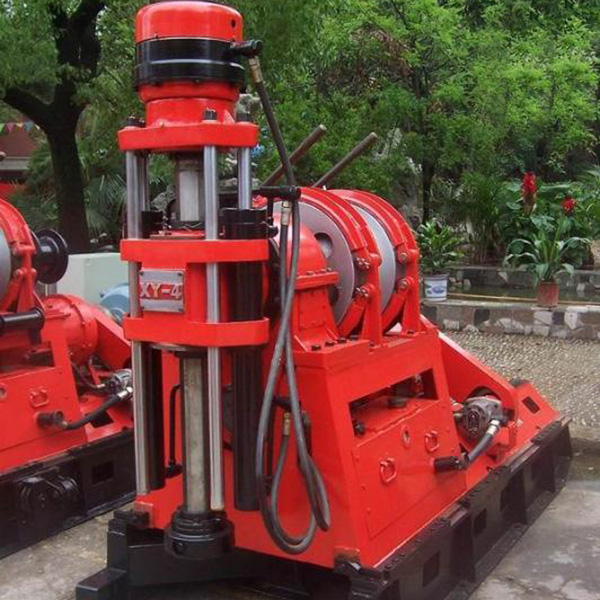

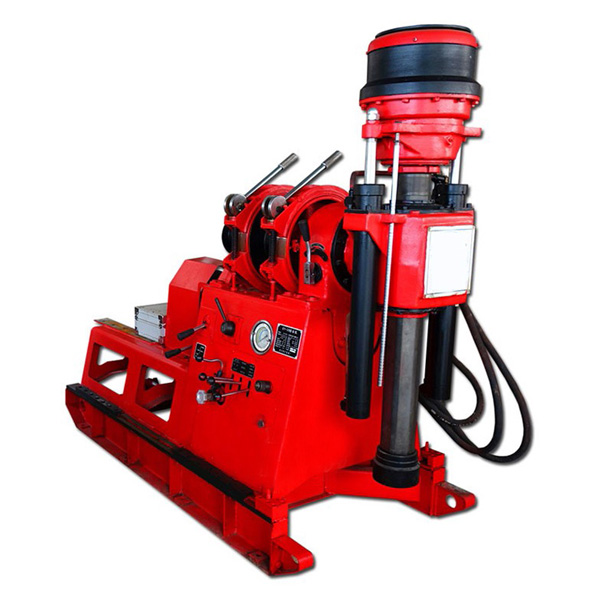

Pictures of XY-2 Rotary Borehole Water Well Drilling Rig Equipment
