XY-2B Borehole Exploration Drill Rigs Machine

XY-2B Borehole Exploration Drill Rigs Machine derived from xy-2 drill rig, it not only keeps all performances of xy-2 drill, but also adds spindle inner hole diameter to 96mm. It is especially availab

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of XY-2B Borehole Exploration Drill Rigs Machine

XY-2B Borehole Exploration Drill Rigs Machine derived from xy-2 drill rig, it not only keeps all performances of xy-2 drill, but also adds spindle inner hole diameter to 96mm. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with xy-2 drill in all design but hydraulic chuck and rotary head modified.

Parameter of XY-2B Borehole Exploration Drill Rigs Machine

Drilling capacity (m)

BQ rod

400-550

NQ rod

350-500

HQ rod

250-300

73 rod

100

60 rod

200

50 rod

380

42 rod

530

Spindle speed(r/min)

Forward

57;99;157;217;270;470;742;1024

Reverse

45;212

Max torque(Nm)

2760

Angle range

0-90°

Spindle max pull force(KN)

60

Spindle stroke (mm)

600

Hoist max lift capacity with single rope (KN)

30

Spindle inner dia (mm)

76

Oil pump

SCB32/12

Power unit

Electric motor

Y180L-4,22Kw

Diesel engine

395K2,19.85Kw

Inner dia of spindle (mm)

2150×900×1690

Drill weight (excluding power)(kg)

950

Contact us to get cost of XY-2B Borehole Exploration Drill Rigs Machine

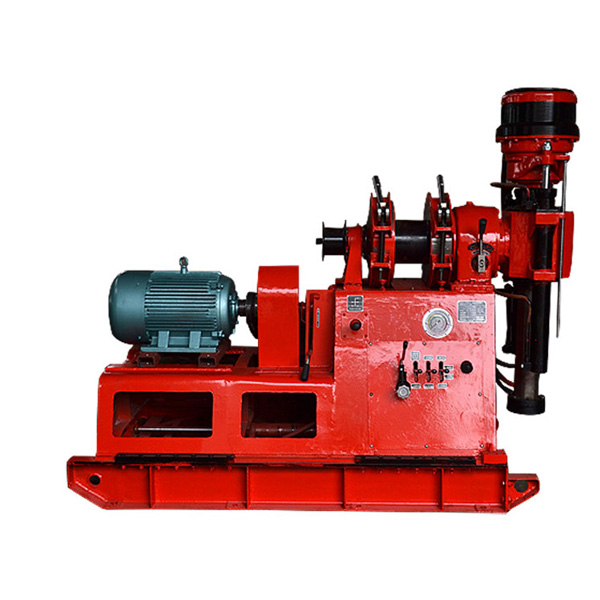

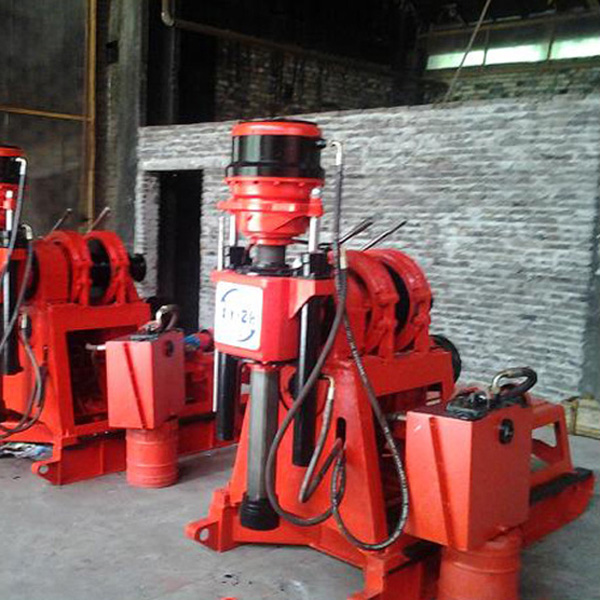

Pictures of XY-2B Borehole Exploration Drill Rigs Machine
