GY-50-1 Double Wheel Mobile Rotary Drilling Rig

GY-50-1 portable drilling rig is adopted with hydraulic pressure feeding structure; it can proceed rotary or percussion drilling, and can be moved by towing the trailer, and can be towing removal. The

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of GY-50-1 Double Wheel Mobile Rotary Drilling Rig

GY-50-1 portable drilling rig is adopted with hydraulic pressure feeding structure; it can proceed rotary or percussion drilling, and can be moved by towing the trailer, and can be towing removal. The rig is widely used for geotechnical engineering drilling in field like construction of industrial and vicil buildings, roads, railways, bridges, dams as well as for geological prospecting work and blasting hole drilling

Using of GY-50-1 Double Wheel Mobile Rotary Drilling Rig

The GY-50-1 Double Wheel Mobile Rotary Drilling Rig is applicable in plough layer, clay, sand seam, sand and stone seam, sand and boulder bed in Quaternary overburden layer. GY-50-1 Double Wheel Mobile Rotary Drilling Rig can get tube sample in varied depth, and it can be used in core or borehole drilling

Parameter of GY-50-1 Double Wheel Mobile Rotary Drilling Rig

Basic Parameters of GY-50-1 Double Wheel Mobile Rotary Drilling Rig

Drilling depth

50 m

Drilling diameter

130 mm

Drill pipe diameter

42 mm

Weight (without engine)

400 kg

Dimension (length * width * height)

1660 * 732 * 1170 mm

Rotary Table

Rotate speed

54, 140, 300 r / min

Maximum torque

350 N*m

Feeding travel

400 mm

Maximum cylinder feeding force

10,000 N

Maximum cylinder lifting force

30,000 N

Lifter

Lifting capacity – single rope, low speed

10,000 N

Bobbin line speed

0.14, 0.32, 0.46, 0.68, 1.17, 2.53 m/s

Bobbin diameter

100 mm

Rope diameter

9.3 mm

Rope capacity

18 m

Drilling tower

Type

Tripod

Height

6 m

Power

Type

Diesel

Rated power

8.8 Kw

Weight

96 kg

Contact us to get cost of GY-50-1 Double Wheel Mobile Rotary Drilling Rig

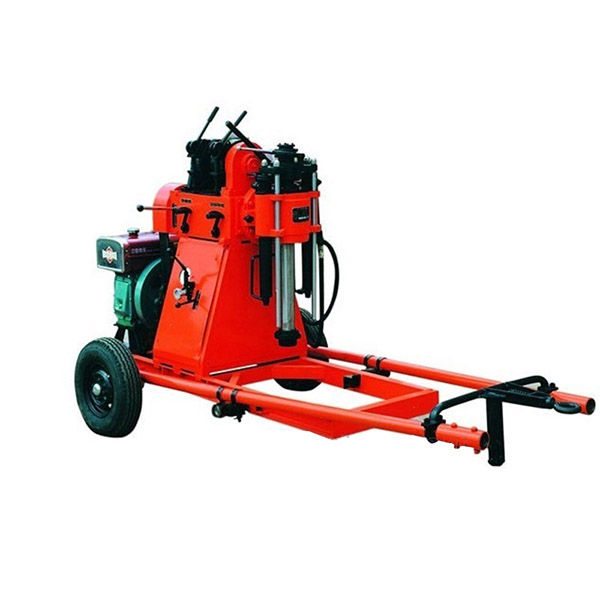

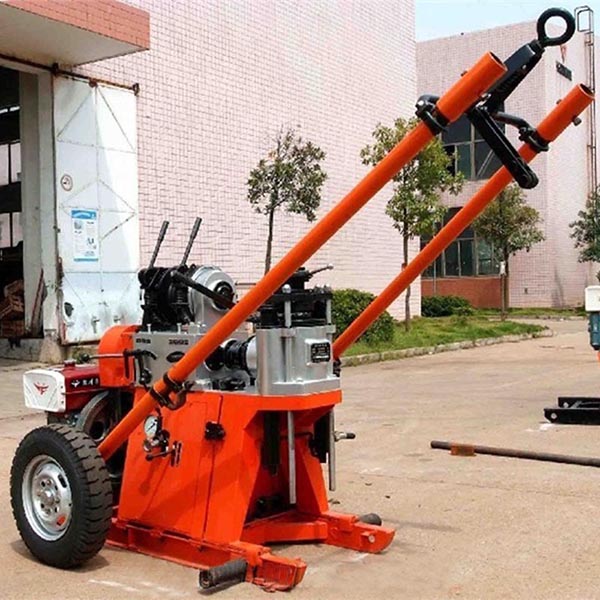

Pictures of GY-50-1 Double Wheel Mobile Rotary Drilling Rig
