XYL Crawler Drilling Rig for Engineering Exploration

XYL-1 (1A, 18, 1A-4, 18-1) XYL Crawler Drill Rig for Engineering Exploration is XY-1 (1A, 18, 1A-4, 18-1) drilling rig that mounted on the rubber crawlers. These drills move easily, with hydraulic fe

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of XYL Crawler Drilling Rig for Engineering Exploration

XYL-1 (1A, 18, 1A-4, 18-1) XYL Crawler Drill Rig for Engineering Exploration is XY-1 (1A, 18, 1A-4, 18-1) drilling rig that mounted on the rubber crawlers. These drills move easily, with hydraulic feeding.

Application Range of XYL Crawler Drill Rig for Engineering Exploration

XYL Crawler Drill Rig for Engineering Exploration widely used in railway, hydropower, highway, bridge and dam etc.; Geologic core drilling and geophysical exploration. Drill the holes for small grouting and blasting.

Structural Configuration of XYL Crawler Drill Rig for Engineering Exploration

The XYL Crawler Drill Rig for Engineering Exploration includes crawler chassis, diesel engine and drilling main body; All these parts will be mounted on one frame.

The diesel engine drives drill, hydraulic oil pump and crawler chassis, the power will be transferred to drill and crawler chassis through transfer case.

Main Feature of XYL Crawler Drill Rig for Engineering Exploration

(1) Being equipped with rubber crawler make the drilling rig moving easily. At the same time, the rubber crawlers won't destroy the ground, so this kind of drilling rig will be convenient for construction in city.

(2) Being equipped with hydraulic oil pressure feeding system improves drilling efficiency and reduces labor intensity.

(3) Being equipped with ball type holding device and hexagonal Kelly, it can accomplish no-stopping working while lifting the rods and get a high drilling efficiency. Operate with convenience, security and reliability.

(4) Through the pressure indicator of bottom hole, the well condition can be observed easily.

(5) Having Hydraulic mast, convenient operation.

(6) Close levers, convenient operation.
(7)The diesel engine starts by the electromotor.

Parameter of XYL Crawler Drilling Rig for Engineering Exploration

About the specifications of drilling rig, please refer to XY-1 (1A, 1 B, 1A-4, 1 B-1) drilling rig

(1) Rubber crawler chassis


Theoretical velocity

Normal speeds 0.9, 2.0, 2.7, 3.2, 6.3, 10 Km/h

Reverse speed

2.1 Km/h

Rated traction power

6 KN

Grade climbing

20° (upgrade and downgrade)

Side tilting angle

25°

Ground clearance

200 mm

Width of crawler

300 mm

Center distance of crawler

1610 mm

Ground contact length of crawler

1080 mm

Ground contact pressure of crawler

35 KPa

(2) Drive system


Turning

single side brake and differential gear turning

Clutch

dry, two pieces, normal engaged clutch

Transmission case

integral gearbox

Control

double control levers

Overall length of crawler

4500 mm

Pitch of crawler

100 mm

(3) Overall dimensions (L x W x H)

3493 x 1170 x 2208 mm

(4) Drill weight

2580 - 2660 Kg

Contact us to get cost of XYL Crawler Drill Rig for Engineering Exploration

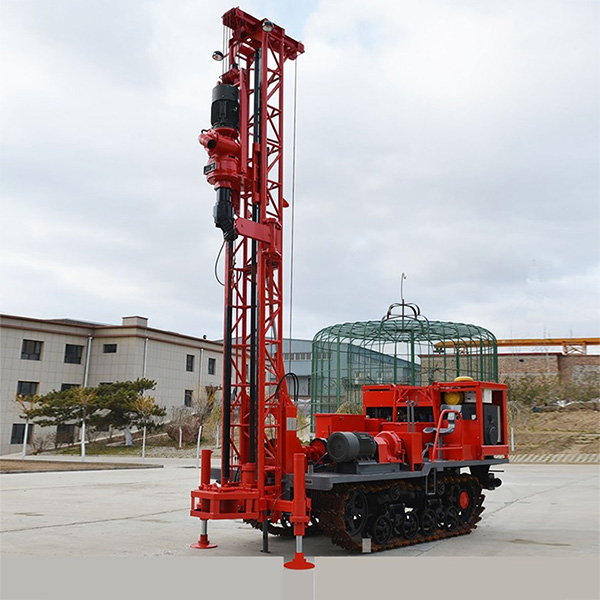

Pictures of XYL Crawler Drilling Rig for Engineering Exploration
