XY- 8 Portable Drilling Rigs for Water Borehole

XY- 8 Portable Drilling Rigs for Water Borehole is newly designed deep hole drilling equipment with large inner diameter of spindle. It can make small hole drilling with diamond bits, as well as large

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of XY- 8 Portable Drilling Rigs for Water Borehole

XY- 8 Portable Drilling Rigs for Water Borehole is newly designed deep hole drilling equipment with large inner diameter of spindle. It can make small hole drilling with diamond bits, as well as large hole drilling with carbide with bits. It is mainly used for exploration of solid metal and nonmetal deposits. It can also used for exploration of hydrology, oil and gas, engineering drilling. This machine can make vertical and inclined drilling.

XY- 8 Portable Drilling Rigs for Water Borehole is Equipped additional rotary-table on the basis of XY-8.

XY- 8 Portable Drilling Rigs can be used as traditional spindle-type machine as well as rotary-table style. It is widely used in geology, hydrology, water well and coalfield.

Features of XY- 8 Portable Drilling Rigs for Water Borehole

Powerful output design, large spindle torque.

Large inner diameter of spindle, Double feeding cylinders and long stoke.

Great clamping force of chuck.

Hoist in horizontal arrangement, high lifting capacity and convenient operations.

Advantages of XY-8B Portable Drilling Rigs for Water Borehole

Powerful output design, large torque output of spindle and rotary-table.

Large inner diameter of spindle, Double feeding cylinders and long stoke.

Big clamping force of chuck.

Hoist in horizontal arrangement, high lifting capacity and convenient operations.

Additional rotary-table, more functions.

Parameter of XY- 8 Portable Drilling Rigs for Water Borehole

XY-8

Drilling Depth(m)

1000-3000

Drilling Rod(mm)

50.5, 60, 71, 73,89,114

Drilling Angle

90-80

Spindle Speed(r/min)

Forwards 79,137,213,223,366,384,604,1024 Reverse 51,144

Pulling Capacity(kN)

300

Feeding Capacity(kN)

142

Feeding Stroke(mm)

1000

Max Single-line Hoisting Force(kN)

130

Lifting Speed(m/s)

0.57-7.58

Steel Wire(mm)

21.5

Rope Capacity(m)

160

Skidding Cylinder Stroke(mm)

690

Motor Engine

90kW Y2280M-4

Diesel Engine

132kW 6BTA5.9-C180

Weight(t)

7.8

Dimensions(L*W*H)(mm)

4049*1754*2593

XY-8B

Drilling Depth(m)

1000-3000

Drilling Rod(mm)

50.5,60,71,73,89,114

Drilling Angle

90-80

Spindle Speed(r/min)

Forwards 79,137,213,223,366,384,604,1024 Reverse 51,144

Pulling Capacity(kN)

300

Feeding Capacity(kN)

142

Feeding Stroke(mm)

1000

Max Single-line Hoisting Force(kN)

130

Lifting Speed(m/s)

0.57-7.58

Steel Wire(mm)

21.5

Rope Capacity(m)

160

Skidding Cylinder Stroke(mm)

690

Motor Engine

90kW Y2280m-4

Diesel Engine

132kW 6BTA5.9-C180

Weight(t)

9

Dimensions(L*W*H) (mm)

4395*1754*2713

Contact us to get cost of XY- 8 Portable Drilling Rigs for Water Borehole

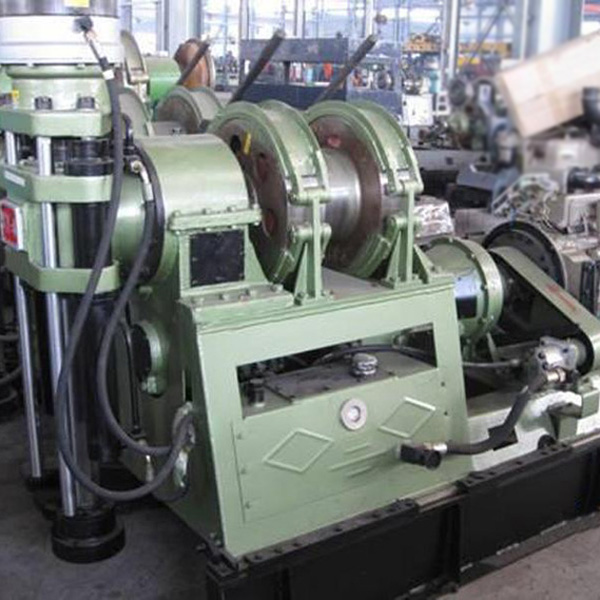

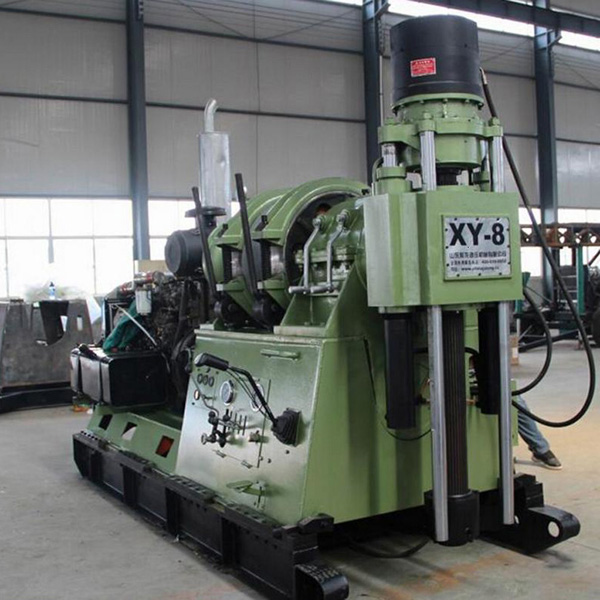

Pictures of XY- 8 Portable Drilling Rigs for Water Borehole
